MF1950-B2 flatbed laminator for building material is a large size flatbed applicator with maximum laminating width up to 1.83m/64''. Therefore, it is an ideal laminating machine for businesses that are looking to build in extra capacity and more versatility.

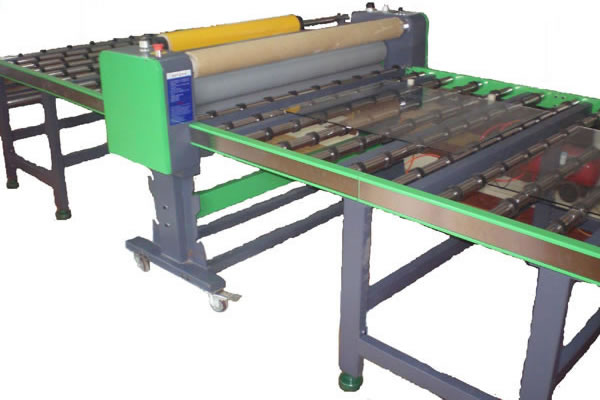

Substrates that are suitable for MF1950-B2 flatbed laminator are glass, HDF, MDF, PVC boards, A-Alum plates, acrylic, etc. The flatbed applicator has 4 pieces of large flatbeds, making piece-to-piece application easier and faster. And meanwhile, the flatbeds can be lengthened or shortened at will, saving your room space after application. A materials guide has been installed to the laminating equipment for efficiency improvement for heavy duty works. In addition, a fixed speed foot pedal provides hands-free control and improves handling when mounting graphics.
| Model | |
| Type | Hot and Cold |
| Max. Lamination Width | 1830mm/72'' |
| Max. Lamination Thickness | Up to 30mm/1.2'' |
| Heating | Infrared |
| Heating Type | Heated top roller |
| Max. Temp. | 100°C/212°F |
| Warm Up Time | 15-20 min |
| Max. Speed | Up to 7m/min |
| Roller | Silicon |
| Roller Diameter | 130mm/5'' |
| Power | 2200W |
| Volt | 110V/220V |
| Height Adjustment | Air pressure |
| Pressure Adjustment | Air pressure |
| Silent Air Compressor | Optional |
| Foot Pedal Switch | Yes |
| Flatbed | 4 Pcs, 1.2m/pc |
| Certificate | CE, RCM, ROHS |
| Static-free | Yes |
