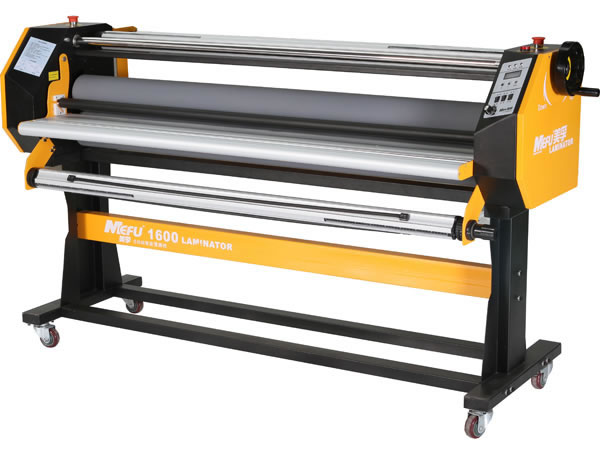

MF1600-F1

Semi-auto Hot & Cold Laminator

Introduction

Distinguished from laminating machinery of MF1400-F1 series, MF1600-F1 semi-auto hot and cold laminator provides even wider format, up to 1.52m/60'' with a max. speed of 7m/min. This semi-automatic laminating machine offers an cost-effective solution to an extensive range of applications. Available with stronger frame, large diameter silicon rollers, steadily pressure system, etc., it allows for more accurate application than ever. Because of two levels of protection, the operator works in complete safety. More than that, the film laminator is configured with new even lighter self-blocking roll-shafts, so users just need a little amount of time to change films. All in all, the numerous features included make MF1600-F1 semi-auto hot and cold laminator so easy and safe to use.

Specifications

Model MF1600-F1
Type Hot and Cold
Max. Lamination Width 1520mm/60''
Max. Lamination Thickness Up to 23mm/0.9''
Heating Infrared
Heating Type Heated Top Roller
Max. Temp. 120°C/248°F
Warm Up Time 10-15 min
Max. Speed Up to 7m/min
Roller Silicon
Roller Diameter 130mm/5''
Power 2200W
Voltage 110V/220V
Height Adjustment Hand Crank
Pressure Adjustment Hand Crank
Foot Pedal Switch Yes
Safety Laser eye
Certificate CE, RCM, ROHS
Static-free Yes

Benefits and Features
