Double Sided Laminator

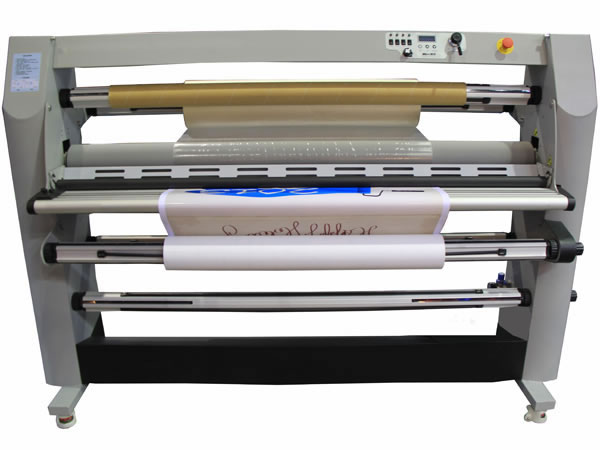

MF1700-F2 double sided laminator is a hot and cold laminating machine that offers exceptionally higher performance-price ratio. As its lamination width is up to 1620mm(64''), this two sided laminator can suit to most common medias. It is ideal for heavy duty applications due to the dual heated high quality silicon rollers.

The double sided laminator is extremely efficient and time-saving with a take roll which enables you to work with roll-to-roll lamination. With fully adjustable temperature, speed and pressure settings, hot and cold laminator of MF1700-F2 series is a highly versatile laminator ideal for the more experienced finisher.


Model MF1700-F2
Type Heat-assist Cold
Max. Lamination Width 1620mm/64''
Max. Lamination Thickness Up to 30mm/1.2''
Heating Infrared
Heating Type Dual heated rollers
Max. Temp. 120°C/248°F
Warm Up Time 15-20 min
Max. Speed Up to 8m/min
Roller Silicon
Roller Diameter 130mm/5''
Power 4400W
Voltage 110V/220V
Height Adjustment Air pressure
Pressure Adjustment Air pressure
Silent Air Compressor Optional
Foot Pedal Switch Yes
Safety Laser eye
Certificate CE, RCM, ROHS
Static-free Yes

Benefits and Features

Optimum Performance
1. MF1700-F2 double sided laminator utilizes large-diameter high quality top heated silicon roller to ensure good finishing.
2. It has adjustable settings for increased capacity and versatility.
3. It is a laminating machine used for double sided hot and cold lamination.
4. Its unique anti-tilt and anti-fold system ensures clear output.

Ease of Use
1. This two sided laminator features automatic pressure and nip gap adjustment.
2. It has simple roll tension regulation system.
3. Easy loading is ensured due to the light weight drop-in supply shafts with auto-grip.
4. Roll-to-roll operation is possible.
5. Available with a foot pedal switch, the double sided laminator is also suited to piece-to-piece application.

1. Foot switch is available for hands free operation
2. Laser safety eyes and 2 emergency stops guarantee operators' safety during the application.
3. Laminating equipment of MF1700-F2 series are CE, RCM, and ROHS certified.
