Semi-auto Heat-assist Cold Laminator

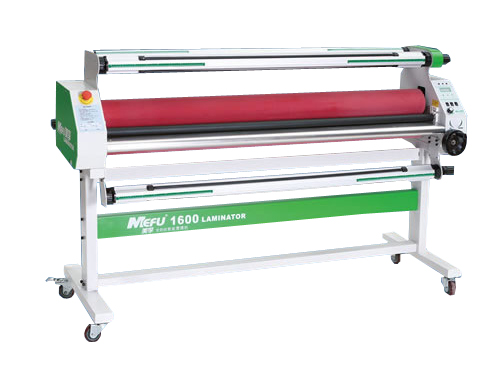

MF1600-M1 semi-auto heat-assist cold laminator is a laminating machine of entry level that performs exceptionally well. This semi-auto heat-assist cold laminating machinery is able to satisfy each of your demand, and has the performance surpassing the requirements of printers and finishers. It offers stand lamination service within a reasonable budget. With lamination width reaching 1.52m/60'', it meets most application requirements. This heat-assist laminator is really a good helper for cold adhesive lamination with air bubble free.

The semi-auto heat-assist cold laminator provides 2 levels of protection to ensure the safety of operators. Additionally, it applies new even lighter self-blocking roll-shafts, with which users can save time while changing film. Thanks to those features, the lamination application is so easy and safe.


Model MF1600-M1
Type Heat-assist Cold
Max. Lamination Width 1520mm/60''
Max. Lamination Thickness Up to 23mm/0.9''
Heating Infrared
Heating Type Heated top roller
Max. Temp. 60℃/140°F
Warm Up Time 5-10 min
Max. Speed Up to 7m/min
Roller Silicon
Roller Diameter 130mm/5''
Power 1400W
Voltage 110V/220V
Height Adjustment Hand Crank
Pressure Adjustment Hand Crank
Foot Pedal Switch Yes
Safety Laser eye
Certificate CE, RCM, ROHS
Static-free Yes

Benefits and Features

Optimum Performance
1. Such semi-auto heat-assist cold laminator provides heat-assist cold lamination without bubbles.
2. It is adjustable in tension, speed, and height settings, which gives rise to increased capacity and versatility.
3. Its fast processing has a speed up to 6m/min.
4. This laminating machine is available with an unique anti-tilt and anti-fold system which ensures clear output.
5. It comes with roll to roll capacity.

Ease of Use
1. The nip gap can be manually adjusted.
2. The heat-assist cold laminator is simple in film tension adjustment.

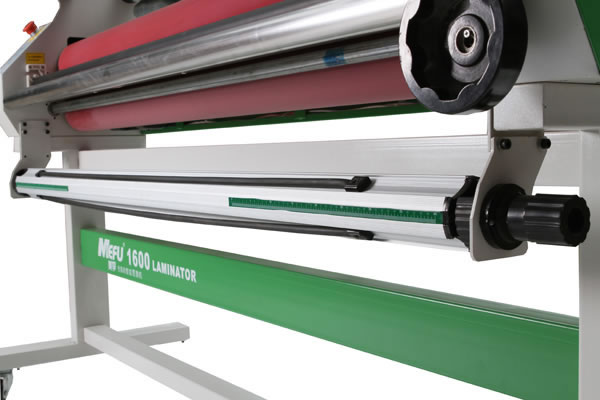

3. Light weight drop-in supply shafts with auto-grip are applied to allow for easy loading.

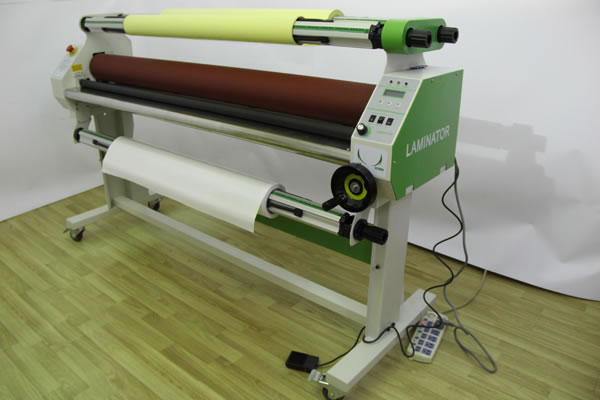

4. Foot pedal switch has been configured for pieces accurate application.

1. The foot switch permits hands free operation

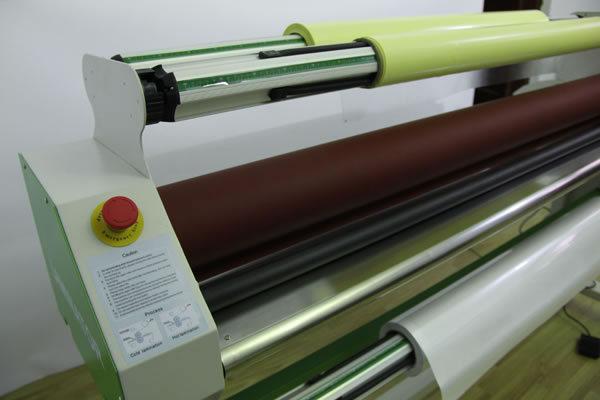

2. While laminating, the semi-auto heat-assist cold laminator ensures operators' safety with laser safety eyes and emergency stop.
3. It comes with CE, RCM, and ROHS approval.
