MF1600-M5

Semi-auto Heat-assist Cold Laminator

Introduction

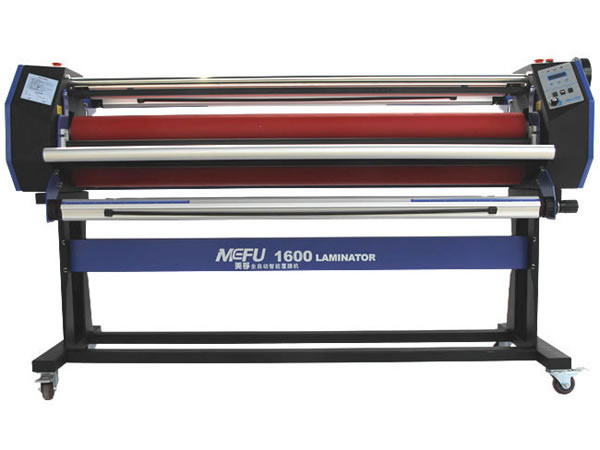

MF1600-M5 semi-auto heat-assist cold laminator is a stronger and steadier heat-assist cold laminating machine. It adopts silicon rollers and has the width up to 1.52m/60''. With unbeaten performances, this heat-assist laminator is really a good helper not only for roll-to-roll application, but also for piece-to-piece application. It offers heat-assistant lamination without any bubble or folders. 2 levels of protection provided by this cold laminating equipment make operators work in complete safety. Moreover, the semi-auto heat-assist cold laminator comes with new even lighter self-blocking roll-shafts, allowing you to save time while changing film.

Specifications

Model MF1600-M5
Type Heat-assist Cold
Max. Lamination Width 1520mm/60''
Max. Lamination Thickness Up to 23mm/0.9''
Heating Infrared
Heating Type Heated top roller
Max. Temp. 60°C/140°F
Warm Up Time 5-10 min
Max. Speed Up to 7m/min
Roller Silicon
Roller Diameter 130mm/5''
Power 2200W
Voltage 110V/220V

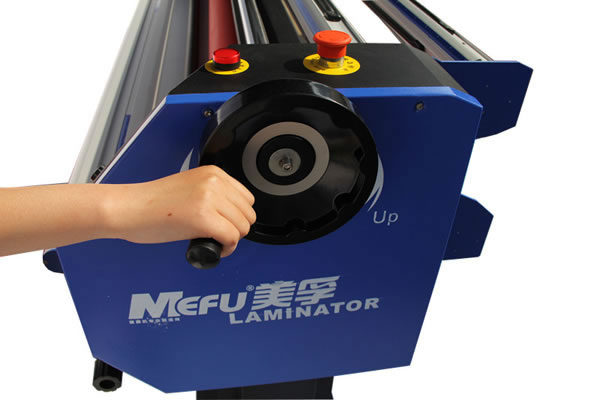

Height Adjustment Hand wheel
Pressure Adjustment Hand wheel
Foot Pedal Switch Yes
Safety Laser eye
Certificate CE, RCM, ROHS
Static-free Yes

Benefits and Features

Optimum performance
1. With high quality silicon rollers, the semi-auto heat-assist cold laminator provides bubble-free application.
2. It is made of stronger frame, so it has longer time and is trouble free.
3. It has a stable pressure system, with which more even pressure will be produced for both sides.
4. Unique anti-tilt and anti-fold system of the heat-assist laminator ensures clear output.

Ease of Use
1. Users can use their hands to adjust the nip gap.
2. When laminating, the film tension can be simply adjusted.
3. The film loading is extremely easy due to the light weight drop-in supply shafts with auto-grip.
4. The semi-auto heat-assist cold laminator is suitable for roll-to-roll operation.
5. Equipped with a foot pedal switch, it also allows for piece-to-piece application.

Safety
1. MF1600-M5 laminating equipment has a foot switch for hands free operation
2. It comes with laser safety eyes and 2 emergency stops. Users can feel secure to use.
3. It has been certified by CE, RCM, and ROHS.
