Fully-auto Hot & Cold Laminator

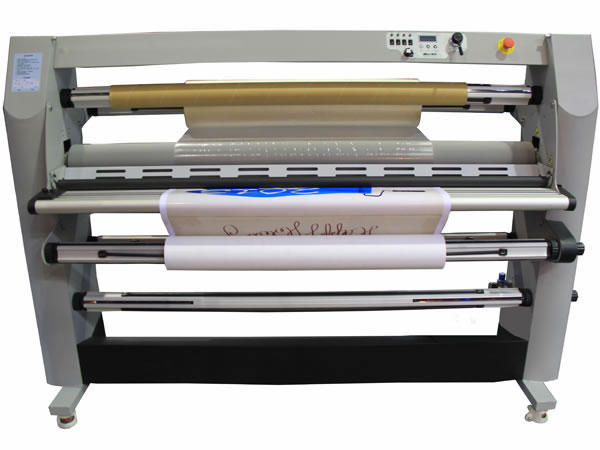

The MF2300-F3 fully-auto hot and cold laminator is a wide format, single sided laminating machine with maximum lamination width of 2.28m/90''. It is developed based on MF1700-F3 series, offering industrial performance at an exceptional value. This laminating machinery is ideal for businesses that are looking to build in extra capacity and more versatility, since it's capable of running a wide range of media and can generate high process speeds.

This fully-auto hot and cold laminator can be used with various laminating films, adhesives, and many other substrates. It features unique design elements, for instance, laser eye for safety protection, convenient feed tray which incorporates image guide for infeed of media, and so forth. These features maximize the performance and versatility of MF2300-F3 automatic laminating equipment without compromising its user friendly nature.


Model MF2300-A1
Type Hot and Cold
Max. Lamination Width 2280mm/90''
Max. Lamination Thickness Up to 30mm/1.2''
Heating Infrared
Heating Type Heated top roller
Max. Temp. 120°C/248°F
Warm Up Time 10-15 min
Max. Speed Up to 7m/min
Roller Silicon
Roller Diameter 130mm/5''
Power 2500W
Voltage 110V/220V
Height Adjustment Air pressure
Pressure Adjustment Air pressure
Silent Air Compressor Optional
Foot Pedal Switch Yes
Safety Laser eye
Certificate CE, RCM, ROHS
Static-free Yes

Benefits and Features
