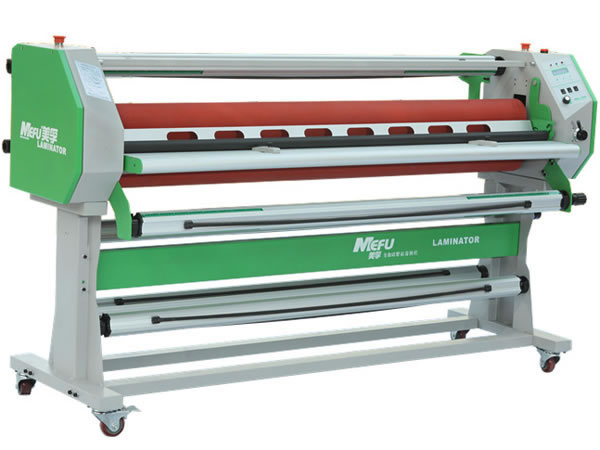

MF2300-C1 fully-auto heat-assist cold laminator is a 2.28m/90'' automatic single sided heat-assist cold mounter designed on the basis of MF1700-C1 series. It is not only capable of running a wide range of media, but also can generate high process speeds. Therefore, this heat-assist laminator is the optimal choice for businesses that are looking to build in extra capacity and more versatility.
This range of fully-auto laminating equipment can be used with an extensive range of laminating films, adhesives, and substrates. It comes with unique design elements. For instance, it has laser eye for safety protection, and possesses easy feed tale which incorporates image guide for infeed of media. Such two features make MF2300-C1 fully-auto heat-assist cold laminator maximized in performance and versatility. Besides that, this film laminating machinery still remains its user friendly nature.
| Model | |
| Type | Heat-assist Cold |
| Max. Lamination Width | 2280mm/90'' |
| Max. Lamination Thickness | Up to 30mm/1.2'' |
| Heating | Infrared |
| Heating Type | Heated top roller |
| Max. Temp. | 60°C/140°F |
| Warm Up Time | 5-10 min |
| Max. Speed | Up to 7m/min |
| Roller | Silicon |
| Roller Diameter | 130mm/5'' |
| Power | 2500W |
| Voltage | 110V/220V |
| Height Adjustment | Air pressure |
| Pressure Adjustment | Air pressure |
| Silent Air Compressor | Optional |
| Foot Pedal Switch | Yes |
| Safety | Laser eye |
| Certificate | CE, RCM, ROHS |
| Static-free | Yes |
