Fully-auto Hot & Cold Laminator

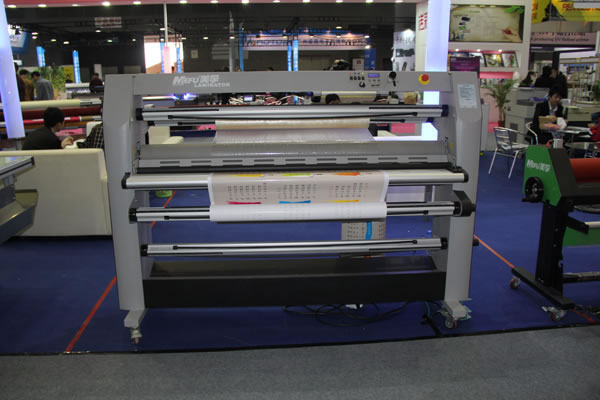

MF1700-F3 fully-auto hot and cold laminator is a 64'' wide single sided hot and cold mounting, laminating system which offers industrial performance at an exceptional value. Its settings including temperature, speed, and pressure are fully adjustable, so the single sided laminating equipment is a highly versatile laminator perfect for the more experienced finishers.

Unique design elements are integrated to this fully-auto hot and cold laminator, i.e. laser eye for safety protection as well as easy feed tale which incorporates image guide for infeed of media. Performance and versatility of MF1700-F3 automatic hot and cold laminating machine has been optimized as a result of the aforesaid design features. This fully automatic laminator is also available in MF2300-F3 series.


Model MF1700-F3
Type Hot and Cold
Max. Lamination Width 1620mm/64''
Max. Lamination Thickness Up to 30mm/1.2''
Heating Infrared
Heating Type Heated top roller
Max. Temp. 120°C/248°F
Warm Up Time 10-15 min
Max. Speed Up to 7m/min
Roller Silicon
Roller Diameter 130mm/5''
Power 2200W
Voltage 110V/220V
Height Adjustment Air pressure
Pressure Adjustment Air pressure
Silent Air Compressor Optional
Foot Pedal Switch Yes
Safety Laser eye
Certificate CE, RCM, ROHS
Static-free Yes
