Fully-auto Hot & Cold Laminator

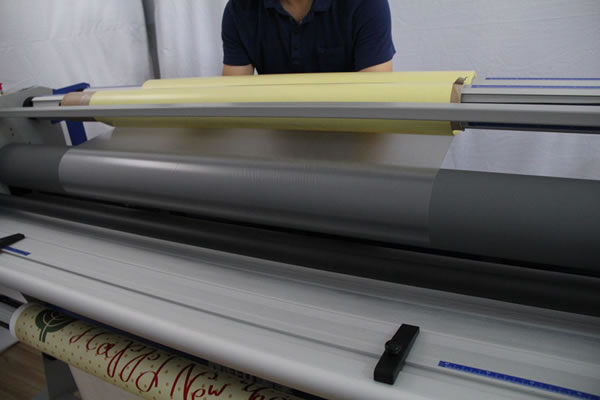

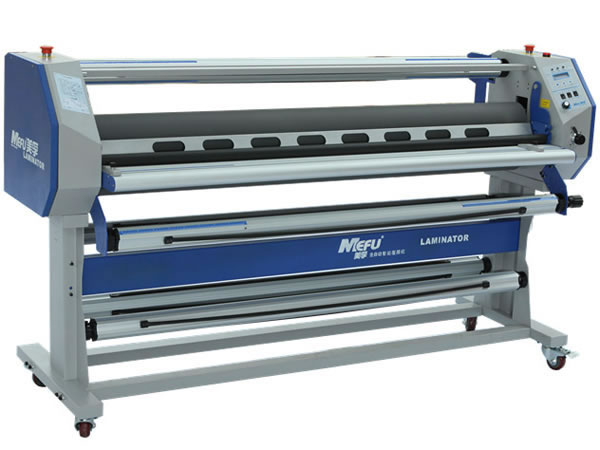

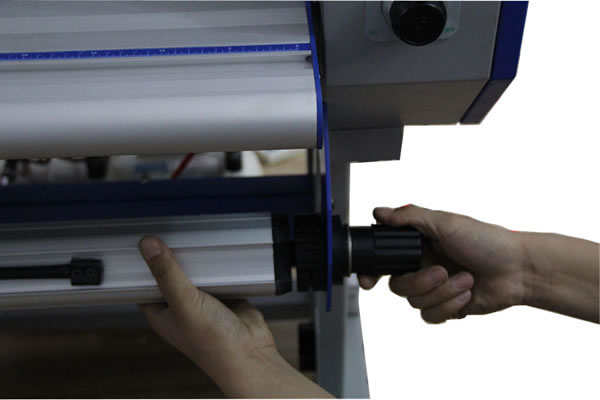

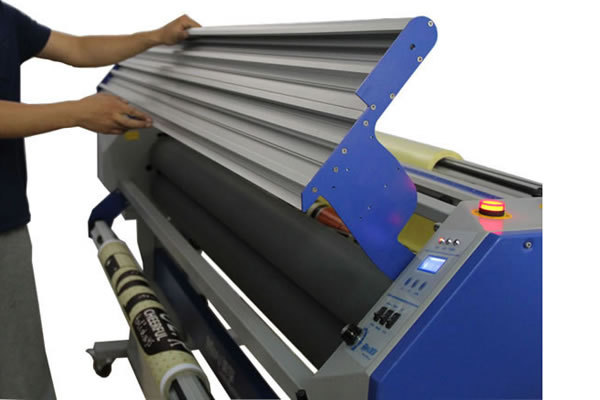

MF2300-A1 fully-auto hot and cold laminator is a 2.28m/90'' single-side laminator developed on the basis of MF1700-A1 series. It can run a wide range of media and generate high process speeds. That's why automatic laminating machine of MF2300-A1 series is suitable for businesses that are looking to build in extra capacity and more versatility. Such machine can be applied with laminating films, adhesives, and other substrates.

Special design features are applied to the fully-auto hot and cold laminator. Unique design elements are laser eye for safety protection as well as easy feed tale which incorporates image guide for infeed of media. The features maximise the performance and versatility of MF2300-A1 hot and cold laminating equipment while maintaining its user friendly nature.


Model MF2300-A1
Type Hot and Cold
Max. Lamination Width 2280mm/90''
Max. Lamination Thickness Up to 30mm/1.2''
Heating Infrared
Heating Type Heated top roller
Max. Temp. 120°C/248°F
Warm Up Time 10-15 min
Max. Speed Up to 7m/min
Roller Silicon
Roller Diameter 130mm/5''
Power 2500W
Voltage 110V/220V
Height Adjustment Air pressure
Pressure Adjustment Air pressure
Silent Air Compressor Optional
Foot Pedal Switch Yes
Safety Laser eye
Certificate CE, RCM, ROHS
Static-free Yes

Benefits and Features
