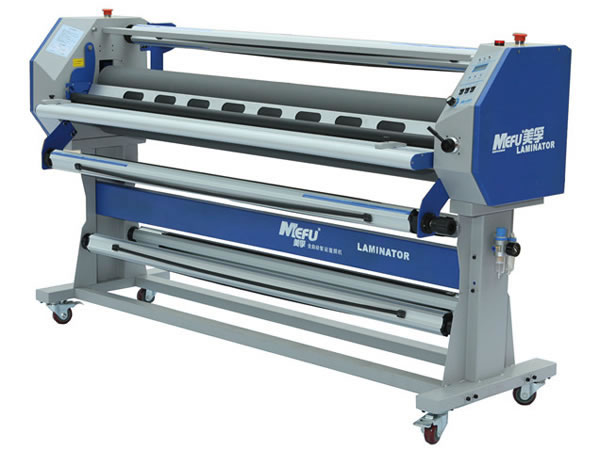

MF1700-A1 fully-auto hot and cold laminator designed for sign and graphic factories, is capable of heavy-duty roll-to-roll lamination operation. It maximally laminates 7 meters per minute. Fully adjustable pressure and height by air ensures efficiency ever. This laminating equipment can meet most applications, mainly lies in that its laminating and mounting width is up to 1620mm(64''). MF1700-A1 fully-auto hot and cold laminator is ideal for all inkjet and printing materials. This fully automatic laminating machinery is also available in MF2300-A1.
| Model | |
| Type | Hot and Cold |
| Max. Lamination Width | 1620mm/64'' |
| Max. Lamination Thickness | Up to 30mm/1.2'' |
| Heating | Infrared |
| Heating Type | Heated top roller |
| Max. Temp. | 120°C/248°F |
| Warm Up Time | 10-15 min |
| Max. Speed | Up to 7m/min |
| Roller | Silicon |
| Roller Diameter | 130mm/5'' |
| Power | 2200W |
| Voltage | 110V/220V |
| Height Adjustment | Air pressure |
| Pressure Adjustment | Air pressure |
| Silent Air Compressor | Optional |
| Foot Pedal Switch | Yes |
| Safety | Laser eye |
| Certificate | CE, RCM, ROHS |
| Static-free | Yes |
