Fully-auto Heat-assist Cold Laminator

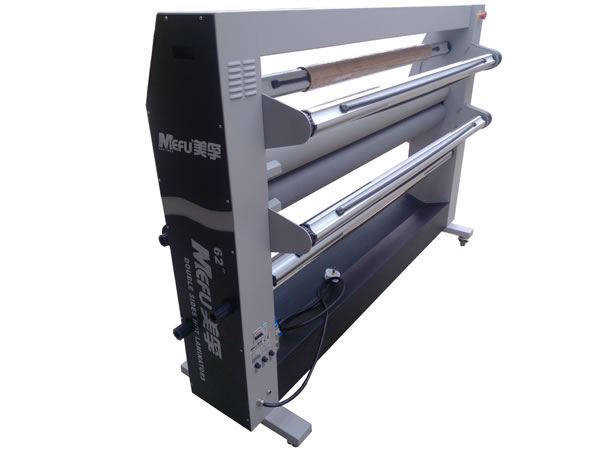

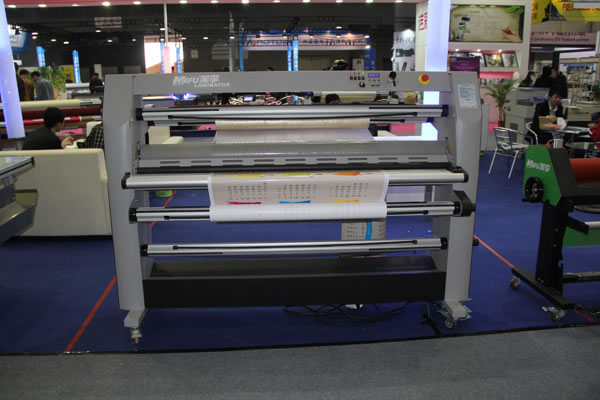

MF2300-F5 fully-auto heat-assist cold laminator is a laminating machine featured by extra capacity and more versatility. It is an automatic laminating machinery which can meet any mounting or laminating width that is lower than 2.28m/90''. It provides industrial performance at an exceptional value. Such fully-auto heat-assist cold laminator incorporates the features of MF1700-F5 from entry-level models for those still finishing jobs by hand, to professional heavy-duty models that will cope with every application all day everyday.


Model MF2300-F5
Type Heat-assist Cold
Max. Lamination Width 2280mm/90''
Max. Lamination Thickness Up to 30mm/1.2''
Heating Infrared
Heating Type Heated top roller
Max. Temp. 60°C/140°F
Warm Up Time 5-10 min
Max. Speed Up to 7m/min
Roller Silicon
Roller Diameter 130mm/5''
Power 2500W
Voltage 110V/220V
Height Adjustment Air pressure
Pressure Adjustment Air pressure
Silent Air Compressor Optional
Foot Pedal Switch Yes
Safety Laser eye
Certificate CE, RCM, ROHS
Static-free Yes

Benefits and Features

Optimum Performance
1. Equipped with high quality top-heated silicon rollers, the fully-auto heat-assist cold laminator is even suited to heavy-duty works.
2. It features adjustable settings for increased capacity and versatility.
3. Its fast processing speed reaches 7m/min.
4. Unique anti-tilt and anti-fold system makes sure clear output of the laminating machine.

Ease of Use
1. The fully-auto heat-assist laminator is fully automatic in pressure and nip gap adjustment.
2. The film tension is easy to adjust.

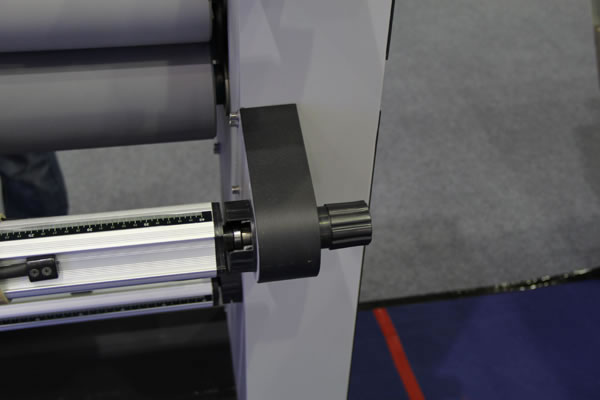

3. Light weight drop-in supply shafts with auto-grip are designed for easy loading.

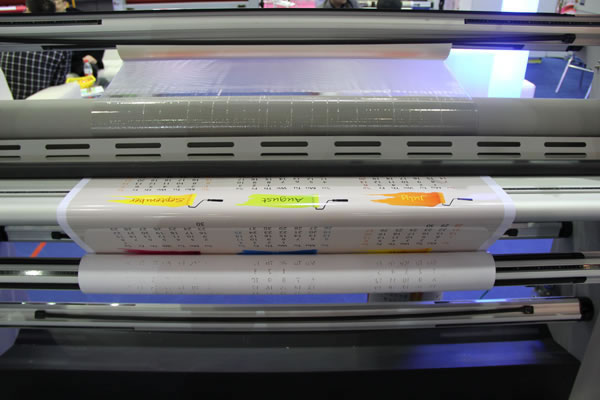

4. MF2300-F5 series automatic cold laminator can be used for roll-to-roll operation.
5. With a foot pedal switch, it is also suitable for accurate piece-to-piece application.

1. The heat-assist laminator has a foot switch for hands free operation.
2. Laser safety eyes and 2 emergency stops safeguard operators during the lamination application.
3. MF2300-F5 series cold laminator has been approved by CE, RCM, and ROHS.
